DIN 1.2344 | AISI H13 | DIN / EN X40CrMoV5-1 | JIS SKD61 | H13 ESR | AFNOR Z40CDV5 | GOST 4KH5MF1S

H13 Tool Die Steel Round Bar Manufacturing Company in India.

AISI H13 Tool Steel Round Bar Exporter in Gulf Countries | AISI H13 Tool Steel Round Bar UAE | AISI H13 Tool Steel Round Bar Indonesia |H13 Tool Die Steel Round Bar Australia | H13 Tool Steel Round Bar Malaysia | H13 Tool Steel Round Bar Singapore | H13 Tool Steel Round Bar Iran | Brazil H13 Tool Steel Round Bar Contents.

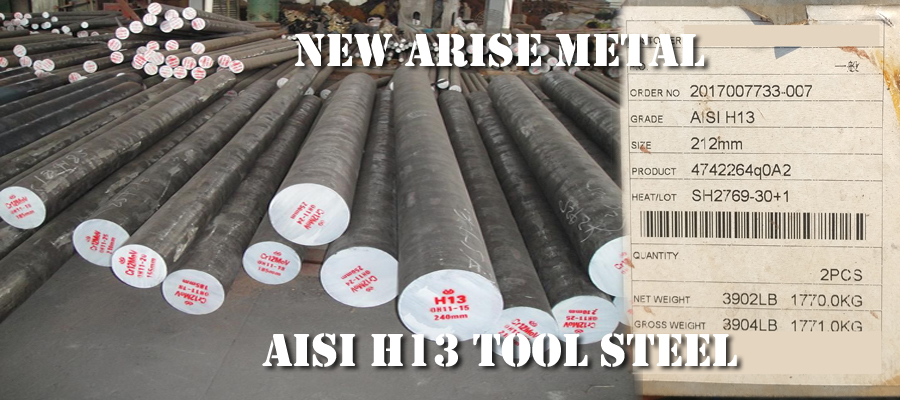

AISI H13 Tool Steel

H13 TOOL Steel Grade Shapes, Sizes, and Technical Information from NEW ARISE METAL :

H13 Tool Steel is an air hardening, 5% Chromium Die Steel which is an excellent choice for a wide range of hot work and cold work applications. It is widely used for aluminum, zinc, and magnesium die casting dies where resistance to thermal fatigue due to alternated heating and cooling cycles is of primary importance. The high vanadium content of H13 increases its resistance to wash caused by the erosive action of the die casting alloy, increase its resistance to heat checking and imparts superior properties at elevated temperatures. H13 also has excellent impact strength to resist cleavage cracking, is easy to machine, can be water cooled in service, and has excellent size change characteristics.

Other typical hot work uses are aluminum extrusions dies and backers, brass extrusion dummy blocks, shear knives, and forging applications. In forging work, it is recommended for die blocks, inserts, punches, pierces, and heading dies.

H13 is finding increasing usage in cold work applications such as die cases for inserted cold heading dies and intermediate Sendzimir rolls. It is often used as cold work shock steel because of its excellent toughness.

AISI H13 Tool Steel is a versatile Chromium Molybdenum Hot Work steel that is widely used in hot work and cold work tooling applications. The hot hardness (hot strength) of H13 resists thermal fatigue cracking which occurs as a result of cyclic heating and cooling cycles in hot work tooling applications. Because of its excellent combination of high toughness and resistance to thermal fatigue cracking (also known as heat checking) H13 is used for more hot work tooling applications than any other tool steel. Because of its high toughness and very good stability in heat treatment, H13 is also used in a variety of cold work tooling applications. In these applications, H13 provides better hardenability (through hardening in large section thicknesses) and better wear resistance than common alloy steels such as 4140.

H13 tool steel is the most popular steel grade for various Industries. The main features of high alloyed Cr-Mo-V Hot Work tool steel is high wear resistance to thermal shock and to heat cracking, good mechanical characteristics & toughness in hot condition.H13 appears excellent machinability with constant hardness during production activities.

The equivalent steel grade H-13 / SKD61 / AISI H13 normally available in the annealed condition but in some specific applications, we provide Pre-Hard H13 with its standard hardness 460-500 BHN. Utilized for ejector pins, apparatus holders and shrink fit chucks.

As a shock absorbing tool steel, AISI H-13 grade may provide an extra margin of safety in tools subject to heavy hammer blows, and those containing deep recesses or sharp corners. H-13 Tool Steel is 5% chromium hot work tool steel designed for applications that require extreme toughness combined with good red-hardness. It should be noted that, although H13 was designed as hot work steel, it has solved many cold work applications where extra toughness could be gained with some sacrifice of wear resistance.

H13 ESR

ESR is the most refined material with the traditional VD route. The quality of material increase the toughness, highly increase the micro- cleanness level. Highly recommend the use of AISI H13 ESR grade for Aluminum Pressure Die Casting & other component subjected to high working temperatures and high pressure strength. H13 is fully ultrasonic inspected with 100% positive results as per NDT standards.

About H-13 Tool Steel :

AISI H13 is a tool steel alloy that contains Chromium, Molybdenum and Vanadium. The Molybdenum and Vanadium provide the strength in this grade while the chromium aids in softening the material when it's being used in high temperatures. H-13 is able to withstand rapid cooling and even premature heat checking. Characteristics include good machining and welding capabilities as well as good ductility.

NEW ARISE METAL is AISI H13 Round Bar Stockist, Stockholders and Suppliers from Mumbai, India. What’s more, We Supply in DIN 1.2344 tool steel Round Bar, Flat bars and Plates more than 18 years experience. H13 chromium hot-work steel is widely used in hot and cold work tooling applications. Due to its excellent combination of high toughness and fatigue resistance H13 is used more than any other tool steel in tooling applications.

Din 1.2344 Steel is High Quality Hot work Tool Steel, and it belong to the high quality high carbon alloy tool steel and Oil Quenched & Tempered Hardness is 28-34 HRC. DIN 1.2344 steel Annealing delivery hardness less than 250HB.

This email address is being protected from spambots. You need JavaScript enabled to view it.

H13 Tool Steel Round Bar Specifications:

AISI H13 steel | DIN 1.2344 | JIS SKD61 | GB 4Cr5MoSiV is characterized by:

• High toughness and ductility
• Small distortion during hardening
• Good through-hardening properties
• Good resistance to abrasion at both low and high temperatures
• Good high-temperature strength and resistance of thermal fatigue

Equivalent of H13 Round Bar Hot Work Alloy Tool Steel :

Properties of AISI H13 / DIN 1.2344 Tool Steel Round Bar / H13 Steel Properties :

AISI H-13 is typically bought to meet Chemistry Requirements rather than physical requirements. For that reason, physical properties are generally not provided unless requested prior to production. Any material can be sent to a third party after production to be tested for physical properties.

High hot-wear resistance and hot tensile strength as well as good toughness, thermal conductivity and insusceptibility to hot cracking. It can be water-cooled to a limited extent. Hot durability further pretty much as good toughness, thermal fatigue resistance, in status to hot cracking, hot wear and plastic deformation will be cool to a restricted extent.

Typical Uses of AISI H13 Tool Steel Round Bar:

Typical applications include Aluminum Extrusion Dies, Die Casting Dies, Heavy Duty Compression Tools, Forming Punches, Hot Forging Dies, Shear Blades, Plastic Mold Dies, Bolt Dies, Forging Dies, Forging Die Inserts, Hot Gripper Dies, Hot Header Dies, Hot Nut Tools, Aluminum Base Dies, Aluminum Casting and Extrusion Dies, Brass Forging and Pressing Dies, Zinc Die Casting Dies, Die Holder Blocks, Extrusion Mandrels, Plastic Molds, Cores, Hot Press Dies, Hot Work Punches, And Etc.

Applications of AISI H13 Tool Steel Round Bar:

This grade is especially used for Ejector Pins, Tool Holders and Shrink Work Chucks. It is wide used for manufacture of Casting Dies, Extrusion Dies and Forging Dies. DIN 1.2344 Steels are mainly used for forming extrusion dies. Typical applications include Casting Molds Aluminum, Magnesium, Zinc, Copper and Aluminum Extrusion Dies, Liners, Spindles, Pressure Pad, Followers, Pad, Die, the Death and the Adapter Ring Copper and Brass Extrusion.

Moreover, DIN 1.2344 is used to produce Hot Stamping, Extrusion Die Forging, Thermal Upsetting Dies, Jigs Mold, Hot Embossing, Punching and Trimming Tools. Other Applications Include Plastic Molds, Shear Blades For Heat and Hot Extrusion Dies. Inserts, Cores, And Cavities For Die Casting Dies, Die Casting Shot Sleeves, Hot Forging Dies, Extrusion Dies, and Plastic Mold Cavities and Components that Require High Toughness And Excellent Polish Ability. Dies for Drop Forgings, Aluminum / low Pressure Die Casting, Extrusion, Containers & liner, Punches, Plugs, Holder , Injection moulds Etc.

Chemistry / Chemical Composition of H13 AISI Tool Steel :

Regular size and Tolerance of DIN 1.2344 / AISI H13 Tool Steel:

• DIN 1.2344 Steel / AISI H13 Round bar: Diameter Ø 5mm – 3000mm
• 2344 Steel plate: Thickness 5 mm – 300 mm x Width 100 mm – 3000 mm
• Steel Hexagonal bar: Hex 5mm – 105mm

Mode of Supply for AISI H13 Tool Steel:

New Arise Metal are largest Stockiest and Supplier of H13 Tool Steel in Flat, Square and Round bar. We provide steel in all sizes as your requirements. H13 die steel is available in Flat, Square and Round Shape. Consult our team who will assist you for H13 steel query.

H13 TOOL STEEL Shapes, Sizes, and Availability:

Below is our stock sizes and availability for AISI H13 Tool Steel. Special sizing, cutting, and grinding are available upon request.

AISI H13 Stock Sizes

• H13 Round Bars are available in ½” to 8” Diameter.

New Arise Metal offers following Processing Services for H13 Tool Steel Round Bar :

• Cutting
• Heat Treating
• Machining
• Additional Services

Other Designations of H13 Tool Steel :

Other designations that are equivalent to H13 Tool Steels include:

• AFNOR Z 40 COV 5
• DIN 1.2344
• UNI KU
• JIS SKD61
• SS 2242
• S. BH 13
• ASTM A681
• FED QQ-T-570
• SAE J437
• SAE J438
• SAE J467
• UNS T20813
• AMS 6408

Fabrication and Heat Treatment :

Machinability :

The machinability rate of H13 tool steels is nearly 75% of that of the W group tool steels.

Forming :

H13 tool steels are formed by using conventional methods.

Welding :

H13 tool steels are readily weldable.

Heat Treatment :

H13 tool steels are preheated to 816°C (1500°F). Then the steels are directly heated by increasing the temperature to 1010°C (1850°F) followed by holding for 15 to 40 minutes. The steels are then air-quenched.

Forging :

H13 tool steels are forged at 1079°C (1975°F). For this type of steels, forging below 898°C (1650°F) is not preferable.

Cold Working :

Cold working may be carried out on H13 tool steels using conventional methods.

Annealing :

H13 tool steels are annealed at 871°C (1600°F) and slowly cooled at 4°C (40°F) in the furnace.

This email address is being protected from spambots. You need JavaScript enabled to view it.
