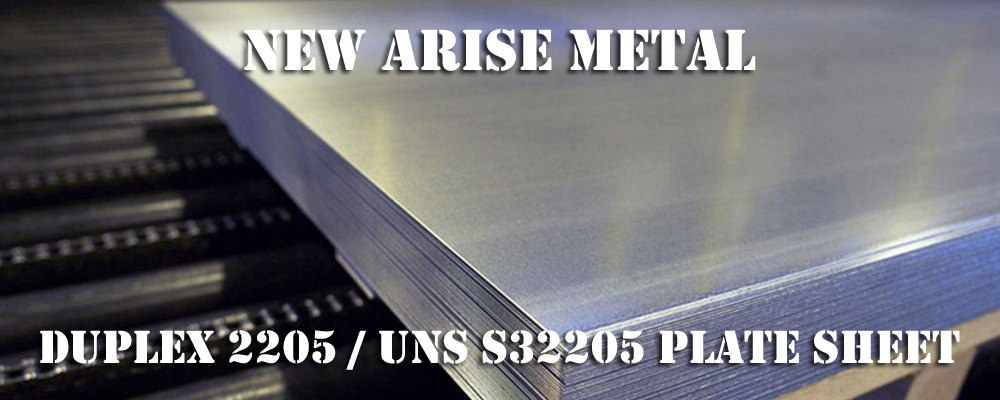

Stainless Steel Duplex 2205 Grade Plates & Sheets
Duplex 2205 Stainless Plate, Alloy 2205, 2205 Q Duplex Stainless Steel Plate, Duplex UNS S31803, UNS S32205 Duplex Stainless Steel
Alloy 2205 (UNS S32305 / S31803) is a 22% chromium, 3% molybdenum, 5-6% nickel, nitrogen alloyed Duplex Stainless Steel Plate with high general, localized, and stress corrosion resistance properties in addition to high strength and excellent impact toughness.
2205 Duplex Stainless Steel Plate provides pitting and crevice corrosion resistance superior to 316L or 317L austenitic stainless steels in almost all corrosive media. It also has high corrosion and erosion fatigue properties as well as lower thermal expansion and higher thermal conductivity than austenitic.
The yield strength is about twice that of austenitic stainless steels, thus allowing a designer to save weight and making the alloy more cost competitive when compared to 316L or 317L.
2205 is a Duplex (Austenitic-Ferritic) Stainless Steel containing about 40 - 50% ferrite in the annealed condition. 2205 has been a practical solution to chloride stress corrosion cracking problems experienced with 304/304L or 316/316L stainless. The high chromium, molybdenum and nitrogen contents provide corrosion resistance superior to 316/316L and 317L stainless in most environments. 2205 is not suggested for operating temperatures above 600°F.
The design strength of 2205 is significantly higher than 316/316L, often permitting lighter wall construction. 2205 has good notch impact toughness down to temperatures below - 40°F. 2205 is welded with E2209 or ER2209 fillers.
Inventory in 2205 Grades :
2205 Flanges, 2205 Hex Nuts, 2205 Pipe, 2205 Plate, 2205 Round Bar, 2205 Sheet, 2205 Weld Wire etc.
Common Trade Names :
2205 Duplex Stainless Steel, Duplex 2205 Plate,
| Trade Name | UNS | Duplex Industry Specifications | Chemical Composition | Min.Tensile (KSI) | Min.Yield(KSI) | Elongation% |
SAF 2205® 22Cr 31803 | UNS S31803 | ASME SA-182 (F51), SA-240, SA-798, SA-790, SA-815ASTM A182 (F51),A240, A276, A479, A789, A790, A815, A928, A988SAE J405 | C 0.30 max | 90 | 65 | 25 |
| Cr 21.0-23.0 | ||||||
| Mn 2.00 max | ||||||
| Mo 2.50-3.50 | ||||||
| N 0.08-0.20 | ||||||
| Ni 4.50-6.50 | ||||||
| P 0.030 max | ||||||
| S 0.020 max | ||||||
| Si 1.00 max | ||||||
SAF 2205® 22Cr 32205 | UNS S32205 | ASME SA-182 (F60), SA-240, SA-798, SA-790, SA-815ASTM A182 (F60), A240, A276, A479, A480, A798, A790, A815, A928, A988SAE J405 | C 0.30 max | 95 | 65 | 25 |
| Cr 22.0-23.0 | ||||||
| Mn 2.00 max | ||||||
| Mo 3.00-3.50 | ||||||
| N 0.14-0.20 | ||||||
| Ni 4.50-6.50 | ||||||
| P 0.030 max | ||||||
| S 0.020 max | ||||||
| Si 1.00 max |
Standards :
| ASTM / ASME | A240 UNS S32205/S31803 |
| EURONORM | 1.4462 X2CrNiMoN 22.5.3 |
| AFNOR | Z3 CrNi 22.05 AZ |
| DIN W. Nr | 1.4462 |
Chemical Composition / Chemistry of Duplex Steel Grade :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 2205 (S31803) | Min | - | - | - | - | - | 21 | 2.5 | 4.5 | 0.08 |
| Max | 0.03 | 2 | 1 | 0.03 | 0.02 | 23 | 3.5 | 6.5 | 0.2 | |
| 2205 (S32205) | Min | - | - | - | - | - | 22 | 3 | 4.5 | 0.14 |
| Max | 0.03 | 2 | 1 | 0.03 | 0.02 | 23 | 3.5 | 6.5 | 0.2 |
Mechanical Properties of 2205 Duplex Steel Grade :
| Grade | Tensile Str(MPa) min | Yield Strength0.2% Proof(MPa) min | Elongation(% in 50mm) min | Hardness | |
| Rockwell C (HR C) | Brinell (HB) | ||||
| 2205 | 621 | 448 | 25 | 31 max | 293 max |
Specifications for Duplex 2205 Q :
ASME SA 182, ASME SA 240, ASME SA 479, ASME SA 789, ASME SA 789 Section IV Code Case 2603, ASTM A 240, ASTM A 276 Condition A, ASTM A 276 Condition S, ASTM A 479, ASTM A 790, NACE MR0175/ISO 15156, NORSOK MDS D45 Grade F51, UNS S31803, UNS S32205, W. NR./EN 1.4462
Features & Characteristics of Duplex 2205 Grade Plate / Sheet :
- High resistance to chloride stress corrosion cracking
- Chloride pitting and crevice corrosion resistance superior to 317L stainless
- Good general corrosion resistance
- High strength
- Good sulfide stress corrosion resistance
- Useful up to 600°F
- Good weldability and workability
Available thicknesses for Duplex Steel 2205 Q Grade:
New Arise Metal has an extensive inventory of 2205 Duplex Plate in thicknesses from 3/16" (4.8mm) through 6" (152.4mm).
Thickness : 3 mm to 50 mm available in Ex-Stock with MILL TC, other size can also be Supplied on confirmation.
Stainless Steel Duplex 2205 Plates With MILL TC Available in Ready Stock.
Applications of Grade 2205 Duplex Steel Plates :
- Pressure Vessels, Tanks, Piping, and Heat Exchangers in the Chemical Processing Industry
- Piping, Tubing, and Heat Exchangers for the handling of gas and oil
- Effluent scrubbing systems
- Pulp and Paper Industry Digesters, Bleaching Equipment, and stock-handling systems
- Rotors, fans, shafts, and press rolls requiring combined strength and corrosion resistance
- Cargo tanks for ships and trucks
- Food processing equipment
- Bio Fuels plants
- FGD scrubber systems
- Oil field piping, Heat Exchangers
- Pulp mill Digesters, Bleach Washers, chip pre-steaming vessels
- Flue gas desulfurization equipment
Corrosion Resistance
General Corrosion :
Because of its high chromium (22%), molybdenum (3%), and nitrogen (0.18%) contents, the corrosion resistance properties of 2205 Duplex Stainless Steel Plate are superior to that of 316L or 317L in most environments.
Localized Corrosion Resistance :
The chromium, molybdenum, and nitrogen in 2205 duplex stainless steel plate also provide excellent resistance to pitting and crevice corrosion even in very oxidizing and acidic solutions.
Stress Corrosion Resistance :
The duplex microstructure is known to improve the stress corrosion cracking resistance of stainless steels.
Chloride stress corrosion cracking of austenitic stainless steels can occur when the necessary conditions of temperature, tensile stress, oxygen, and chlorides are present. Since these conditions are not easily controlled, stress corrosion cracking has often been a barrier to utilizing 304L, 316L, or 317L.
Corrosion Fatigue Resistance :
Alloy 2205 duplex stainless steel plate combines high strength and high corrosion resistance to produce high corrosion fatigue strength. Applications in which processing equipment is subject to both an aggressively corrosive environment and to cycle loading can benefit from the properties of 2205 duplex stainless steel plate.
Cold Forming 2205 Grade :
Alloy 2205 duplex stainless steel plate is readily sheared and cold formed on equipment suited to working stainless steels. However, because of the high strength and rapid work hardening of 2205 duplex stainless steel plate, forces substantially higher than those for austenitic steels are required to cold form it. Also because of the high strength, a somewhat larger allowance must be made for spring back.
Heat Treatment 2205 Grade :
Alloy 2205 duplex stainless steel plate should be annealed at 1900°F minimum, followed by rapid cooling, ideally by water quenching. This treatment applies to both solution annealing and stress relieving. Stress relief treatments at any lower temperature carry the risk of precipitation of detrimental intermetallic or nonmetallic phases.
Machinability :
With high-speed steel tooling, 2205 duplex stainless steel plate may be machined at the same feeds and speeds as Alloy 316L. When carbide tooling is used, cutting speeds should be reduced by about 20% relative to the speeds for Alloy 316L. Powerful machines and rigid mounting of tools and parts are essential.
Welding of 2205 Duplex:
Alloy 2205 duplex stainless steel plate possesses good weldability. The goal of welding 2205 is that the weld metal and heat-affected zone (HAZ) retain the corrosion resistance, strength, and toughness of the base metal. The welding of 2205 is not difficult, but it is necessary to design welding procedures that lead to a favorable phase balance after welding and will avoid precipitation of detrimental intermetallic or nonmetallic phases.
Alloy 2205 duplex stainless steel plate can be welded by: GTAW (TIG); GMAW (MIG); SMAW ("stick" electrode); SAW; FCW; and PAW.
