EN24 VD (Vacuum Degassed) Round Bars, AISI / SAE 4340, Werkstoff No. 1.6582, DIN 34CrNiMo6, BS 817M40

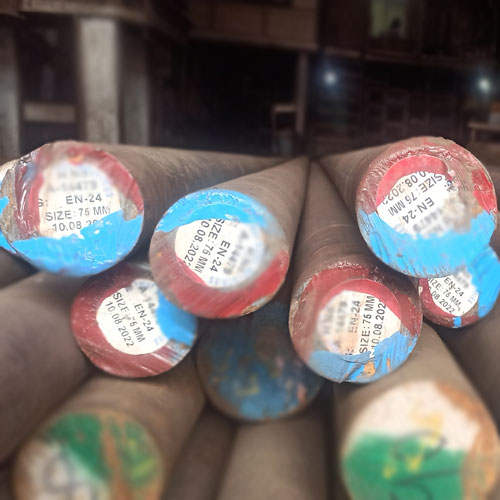

EN24 VD Round Bars

EN24 VD Route Round Bars is a 1.5% nickel, 1% chromium, 0.2% molybdenum Alloy Steel. EN24 can be heat treated to a wide range of tensile strengths from 850-1000 N/mm² (‘T’ condition) up to 1550 N/mm² (‘Z’ condition). Heat treated EN24 offers high tensile strength combined with good ductility and resistance to shock. At low temperatures good impact values can be obtained.

817M40 / EN24 steel is a high tensile alloy steel renown for its wear resistance properties and also where high strength properties are required. EN24 is used in components subject to high stress and with a large cross section. This can include aircraft, automotive and general engineering applications for example propeller or gear shafts, connecting rods, aircraft landing gear components.

Stock Size :

• Round : 32mm, 34mm, 36mm, 40mm, 50mm, 60mm, 70mm, 75mm, 80mm, 85mm, 90mm, 100mm, 110mm, 120mm, 125mm, 130mm, 140mm, 150mm, 160mm

For more Size and availability please contact us.

Flats also available in EN24 (Non VD Route) for more details contact us.

EN24 VD Chemical Composition 1.6582 / 817M40 / 34CrNiMo6 / 35NCD6 / 4340 :

EN24 Round Bars Steel Equivalents :

Being such a popular alloy steel grade many countries around the world started producing their own versions of a nickel chrome moly high tensile steel. With some subtle differences in composition these are some examples of the foreign equivalents to EN24

Typical Mechanical properties for EN24 :

EN24 is commonly supplied in Annealed Condition in both VD and Non VD.

EN24 Annealed :

EN24 when annealed has no specific mechanical or hardness values. For guidance only it will be in the region of 220 Hardness Brinell. This hardness can vary due to rate of heating and cooling, also other factors such as the shape and size of the steel being annealed.

Applications of EN24 Round Bars :

EN24 was classified as a wrought steel for automobiles and aircrafts and as such was used to produce numerous parts and components for these industries. It is most popular as EN24T and with good high tensile properties in T condition it is used widely in the manufacturing sector. Some examples of applications include:-

• • Power transmission gears and other gears requiring maximum hardness.
• • Cranks, axles, propellor and gearbox shafts requiring good high tensile properties.
• • Connecting rods, special cranks and other parts required to be stiff and yet retain a high degree of toughness.
• • Bolts, screwed parts, stub axles, swivel arms required very tough.
• • Plastics and rubber moulding industry parts for moulds, hob retaining rings, stop pins.
• • Structural components with good high tensile needs.
• • High strength shafts
• • Punches & dies
• • Drill bushings
• • Retaining rings
• • Gears
