Stockist, Suppliers & Exporters of Aluminium Alloys 7075 T651 Sheets & Plates

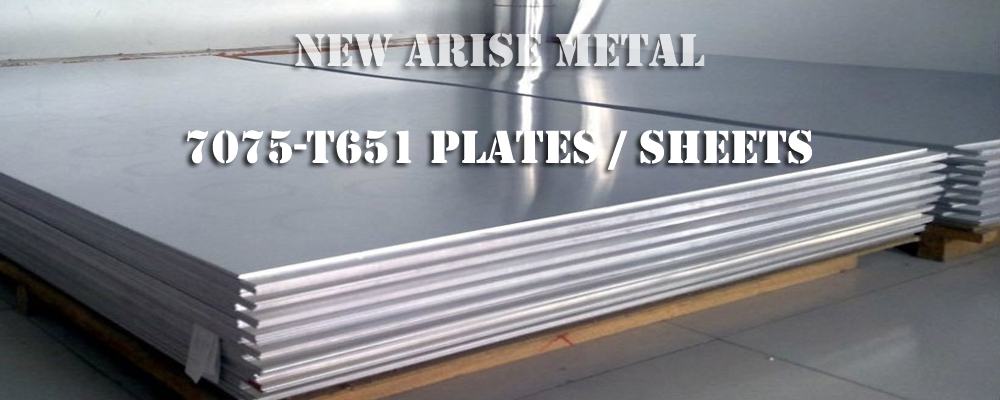

Aluminum 7075-T651 Plates & Sheets

7075 aluminium alloy is an aluminium alloy, with zinc as the primary alloying element. It is strong, with strength comparable to many steels, and has good fatigue strength and average machinability. It has lower resistance to corrosion than many other aluminium alloys, but has significantly better corrosion resistance than the 2000 alloys. Its relatively high cost limits its use.

7075 aluminium alloy's composition roughly includes 5.6–6.1% zinc, 2.1–2.5% magnesium, 1.2–1.6% copper, and less than a half percent of silicon, iron, manganese, titanium, chromium, and other metals. It is produced in many tempers, some of which are 7075-0, 7075-T6, 7075-T651.

General 7075 characteristics and uses (from Alcoa): Very high strength material used for highly stressed structural parts. The T7351 temper offers improved stress-corrosion cracking resistance.

7075-T651 aluminum is 7075 aluminum in the T651 temper. To achieve this temper, the metal is solution heat-treated, stress relieved, then artificially aged. The stress relief is accomplished by stretching the metal by an amount that depends on the type of standard wrought product being made (sheet, plate, bar, or forging).

Aluminum 7075 is the major alloy in 7000 Series and Zinc is the major alloying element in this series. Aluminum 7075 possesses high static strength and is used in airframe structures and for highly stressed parts. Aluminum 7075 is available in several types of tempers such as T6, T651, T73, T7351 and T76.

T6 temper has the highest strength but lowest toughness and resistance to stress-corrosion cracking. Since toughness decreases with a decrease in temperature, the T6 temper is not generally recommended for cryogenic applications. The T73 temper provides much improved stress-corrosion resistance over T6 temper with a decrease in strength. The T76 temper provides improved exfoliation resistance and limited stress corrosion resistance over T6 temper with some decrease in strength.

New Arise Metal is a national distributor of 7075-T651 aluminum plate. One of the strongest of the aluminum alloys, 7075 aluminum plate provides great performance and superior corrosion resistance for our customers.

Zinc is the primary alloying element of 7075 with 1 to 8 percent of the material composed of zinc. It is precipitation hardened to strength levels comparable to steel. With 7075’s T651 temper, it has been solution heat treated followed by a minimal stretching to reduce stresses in the material. The material has also been artificially aged to allow the alloying elements to precipitate out of the material to give it immediate maximum strength.

7075-T651 possesses good fatigue strength, fair machinability, resistance welding and corrosion resistance ratings. This makes it appropriate for use in highly stressed components.

7075 ALUMINUM PLATES and SHEETS

Alloy 7075 aluminum plates are the outstanding member of the 7xxx series and remains the baseline among the highest strength alloys available. Zinc is the primary alloying element giving it strength comparable to steel. Temper T651 possesses good fatigue strength, fair machinability, resistance welding and corrosion resistance ratings. Alloy 7075 in temper T7x51 has superior stress corrosion resistance and replaces the 2xxx alloy in the most critical applications. It is widely used by the aircraft industry with the typical specifications of ASTM B209, AMS-QQ-A-250/4, as well as many end users requirements.

Aluminum Plate 7075

This aluminum plate is made of one of the strongest of the aluminum alloys. Its use parallels that of 2024, with 7075 selected when higher mechanical properties are desired. 7075 aluminum is an aluminum-zinc alloy with 1%-8% zinc in addition to small amounts of magnesium and small quantities of copper and chromium. This alloy is precipitation hardened to very high strength levels. Alloy 7075 is used in airframe structures and other highly stressed components.

7075-T651 Aluminum Plate

Our 7075 plate has T651 temper, indicating it has been solution heat treated followed by a minimal stretching to reduce stresses in the material. The material was then artificially aged to allow the alloying elements to precipitate out of the material, to give immediate maximum strength.

Mechanical Properties :

7075-T651

T651 temper 7075 has an ultimate tensile strength of 570 MPa (83,000 psi) and yield strength of 500 MPa (73,000 psi). It has a failure elongation of 3–9%. These properties can change depending on the form of material used. Thicker plate may exhibit lower strengths and elongation than the numbers listed above.

Trade Names

7075 has been sold under various trade names including Zicral, Ergal, and Fortal Constructal.

Some 7000 series alloys sold under brand names for making molds include Alumec 79, Alumec 89, Contal, Certal, Alumould, and Hokotol.

Applications of Aluminium 7075 T651:

• Air frame structures
• Highly stressed aircraft parts
• Aircraft fittings
• Gears and shafts
• Fuse parts
• Meter shafts and gears
• Missile parts
• Regulating valve parts
• Worm gears
• Keys
• Aircraft
• Aerospace
• Defense applications
• Bike frames
• All terrain vehicle (ATV) sprockets

7075 Aluminum Applications :

In terms of strength, 7075 Aluminum is near the top of the list among aluminum alloys manufactured for the needs of consumer and industrial markets. Among other 7XXX alloys, alloy 7075 exists as a standard with a solid mix of properties suitable for aircraft and aerospace applications. In particular, this alloy utilized in various forms, including as 7075 aluminum bar, is well-suited for use in parts that endure high stress levels. The strength properties of alloy 7075 are beneficial for the manufacture of items such as aircraft structures, military grade rifles, bicycle parts and equipment, and plastic industry molds.

7075 T651 Aluminum :

An aluminum alloy best suited for aerospace and aviation applications is 7075 T651. This tempered alloy has a high tensile strength which makes it particularly applicable for certain high-strength applications.

Sizes Available and Specs :

At New Arise Metal, we stock 7075 aluminum in thicknesses ranging from 25 mm and up through 100 mm thicknesses. All of our 7075 T651 aluminum plate meets ASTM B209, QQA 250/12, and AMS 4045 specifications. All pieces of aluminum supplied to you by New Arise Metal is certified and fully traceable back to the master plate. Please ask us about specific plates and compliance issues with any specialty aircraft or specific industry specifications.
