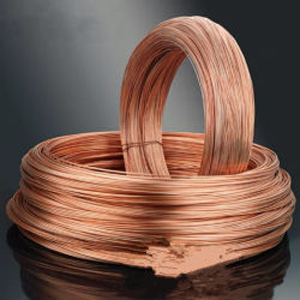

We NEW ARISE METAL have our in-depth knowledge and industrial expertise have enabled us to offer Beryllium Copper Wire. The offered copper wire is manufactured from the best in class copper & advanced technology, in conformity with set industrial standards. This copper wire is inspected on different parameters in order to supply flawless range. Our offered copper wire is known for their high tensile strength, flexibility, abrasion resistance and can sustain high working temperature.
Product Details:
- Insulation – No
- Diameter - 0.02 - 1 mm, 1-3 mm, 3-5 mm, 5-7 mm, 7-9 mm, >9mm
- Wire Gauge - 0-5, 5-10, 10-15, 15-20, 20-25, >25, >25
- Conductor Type - Solid
Features:
- Quality tested
- High tensile strength
- Durable
- Weather resistant
Applications: Copper Wires which are used widely in electrical, electronic and automobile industry. These are available in varied sizes and dimension to meet the requirements of the clients.
Specification: C17200, C17300, C17500, C17510Grade: Beryllium Copper Cu (Min): 97%.
Chemical Composition / Chemistry (wt%):
| Elements | Chemistry % | ||
| Copper Alloy UNS C17200 | |||
| C17000 | C17200 | C17300 | |
| Be | 1.60-1.79 | 1.80-2.00 | 1.80-2.00 |
| Ni Co,≥ | 0.2 | 0.2 | 0.2 |
| Ni Co Fe,≤ | 0.6 | 0.6 | 0.6 |
| Al,≤ | 0.2 | 0.2 | 0.2 |
| Si,≤ | 0.2 | 0.2 | 0.2 |
| Pb | / | / | 0.20-0.60 |
| Cu | Remainder | Remainder | Remainder |
