Stainless Steel 17-4PH Plates, Sheets, UNS S17400, Din 1.4542

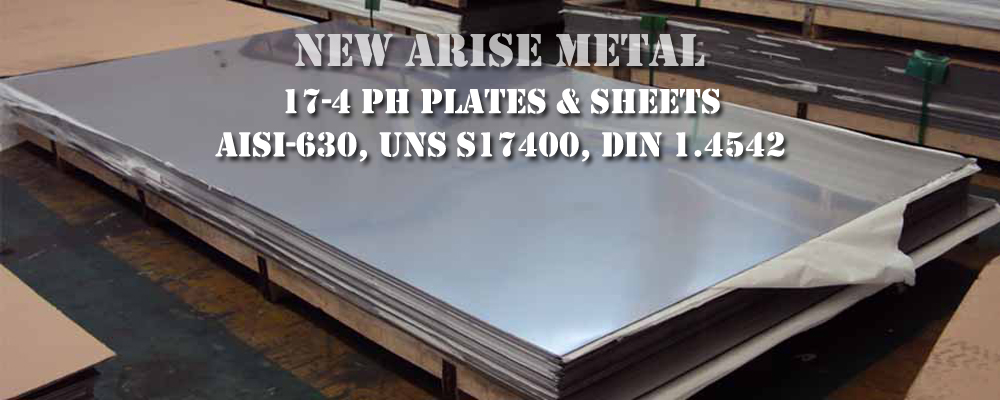

17-4 PH Plates / Sheets

17-4PH Stainless Steel Sheets, Coils and Plates - AMS 5604, UNS S17400 :

17-4 PH is a Martensitic, Chromium-Nickel-Copper precipitation hardening Stainless Steel. 17-4PH Stainless Steel is capable of attaining a wide range of strength and toughness properties depending on the precipitation or aging temperature used in hardening.  Its valuable combination of High Strength, Good Corrosion Resistance and Toughness in both base metals and welds gives designers opportunities to add reliability to their products while simplifying fabrication and often reducing costs. High strength is maintained to approximately 600°F (316°C). This material has good resistance to stress corrosion cracking in the lower strength conditions.

Stainless Steel 17-4 PH Plates & Sheets is prized for its ability to simplify fabrication and manufacturing processes, which can result in significant cost savings and reductions. Engineers all over the world rely on this PH stainless steel as a solution to pressing logistical problems in Product Design, Manufacturing and Processing.

Alloy 17-4PH :

Alloy 17-4PH is a precipitation hardening martensitic stainless steel with Cu and Nb / Cb additions. The grade combines high strength, hardness (up to 572°F /300°C), and corrosion resistance. Mechanical properties can be optimized with heat treatment. Very high yield strength up to 1100-1300 MPa (160-190 ksi) can be achieved.

Alloy 17-4PH (UNS S17400), W. Nr. 1.4542 Type 630 is A Precipitation-Hardening Martensitic Stainless with High Strength and Hardness and Good Corrosion Resistance. The 17-4 stainless steel grade is an age-hardening martensitic alloy that combines high corrosion resistance and strength. Unlike conventional martensitic steels, it weldable by all standard methods, and achieves hardening with simple low-temperature treatment over a short period of time. This product is a cost-effective replacement for high strength carbon steels as well as other stainless grades as it has a high strength and resistant to corrosion.

General Properties of Stainless Steel Alloy 17-4 PH :

Alloy 17-4PH (UNS S17400), Type 630, is a Chromium-Nickel-Copper precipitation-hardening martensitic stainless steel with an addition of niobium. 17-4PH combines high strength and hardness with good corrosion resistance.

The alloy is furnished in the solution annealed condition (Condition A). It should not be used at temperatures above 572°F (300°C) or for cryogenic service. Optimal mechanical properties can be obtained by subjecting the alloy to age hardening heat treatments. Heat treatment in the 900°F (482°C) range produces the highest strength.

The corrosion resistance of Alloy 17-4PH is comparable to 304 Stainless Steel in most environments, and is generally superior to the 400 series stainless steels. It is used in applications where the combination of moderate corrosion resistance and unusually high strength are required. Alloy 17-4PH can be easily welded and processed by standard shop fabrication practices. It is magnetic.

New Arise Metal stocks 17-4 PH Stainless Steel. 17-4 PH is a chromium-nickel grade of stainless that may be hardened by a single low temperature precipitation-hardening heat treatment. Excellent mechanical properties at a high strength level may be obtained by such treatment. Scaling and distortion is minimized. 17-4 PH should not be used in the solution treated condition.  17-4 machines well, has excellent welding characteristics, and forges easily. The combination of good mechanical and processing properties makes this grade adaptable to a wide range of uses. Alloy 17-4 PH withstands corrosive attacks better than any of the standard hardenable stainless steels and is comparable to Alloy 304 in most media.

Stainless Steel 17-4 PH Plates Manufacturer :

New Arise Metal is a known Stockist, Suppliers, Exporters and Distributors of 17-4 PH Steel Plates, which are precisely designed at our highly developed manufacturing unit following industry defined standards. Stainless Steel 17-4 PH Plates, SS 17-4 PH Plates (UNS S17400) is the most widely used of all the precipitation-hardening stainless steels.

Buy 17-4 PH Stainless Steel Plates at cost-effective rates from us. The valuable combination of 17-4 PH Steel Sheets (DIN 1.4542) properties gives designers opportunities to add reliability to their products while simplifying fabrication and often reducing costs. Typical usage of 17-4 PH Steel Coils is seen in applications requiring high strength and a modest level of corrosion resistance. Stainless Steel 17-4 PH Coils is widely used in the Aerospace, Chemical, Petrochemical, Food Processing, Paper and General Metalworking Industries.

Chemical Composition of 17-4 PH Grade :

17-4 PH or Precipitation Hardening Stainless Steel is a commonly used industrial metal, thanks to its versatility and excellent performance characteristics. Its composition range is as follows:

• Chromium: 15 to 17.5 percent
• Nickel: 3 to 5 percent
• Copper: 3 to 4 percent
• Manganese: 1 percent
• Silicon: 1 percent
• Columbium/Tantalum: five times the amount of carbon, or a maximum of 0.45 percent
• Carbon: up to 0.07 percent
• Phosphorus: 0.025 to 0.04 percent
• Sulfur: 0.025 to 0.03 percent
• Molybendum: up to 0.05 percent
• Iron: makes up the remainder

Chemical Analysis of 17-4PH Plates & Sheets :

Weight % (all values are maximum unless a range is otherwise indicated)

Properties of 17-4PH :

17-4 PH has inherent strength, corrosion resistance, and hardness, and its mechanical properties can be enhanced with the help of heat treatments. When treated, 17-4 PH can yield strength ratings as high as 1100 to 1300 MPa (160 to 190 ksi).

Standard Inventory Specifications :

• UNS S17400
• AMS 5604
• ASTM A 693
• ASME SA 693
• NR. 1.4542
• PWA-LCS
• GE-S400/S1000
• RR SABRe Edition 2
• DFARS Compliant
• SAE AMS 5604

Standards :

• ASTM.......A 693
• ASME.......SA 693
• AMS.........5604
• ASTM/ASME: UNS S17400
• EURONORM: X5CrNiCuNb16.4
• AFNOR: Z6CNU17-04
• DIN: 1.4542

Common Trade Names of 17-4 PH :

• 17-4 (® AK Steel)
• ATI 17-4 (™ Allegheny Technologies)
• 17-4PH Stainless
• 17-4 PH Stainless Steel

Inventory Size Range :

• 17-4 PH Stainless Steel Sheets : 10 mm to 20 mm
• 17-4 PH Stainless Steel Bar : 10 Dia to 200 Dia
• 17-4 PH Stainless Steel Plates : 10 mm to 78 mm
• 17-4 PH Stainless Steel Round Bar : 10 Dia to 200 Dia
• 17-4 PH Stainless Steel Flat Bar : 5 mm to 100 mm

Applications :

Industries that make heavy use of this Stainless Steel 17-4 PH product include Food Production, Pulp and Paper, and Chemical Processing. It also has a wide range of applications in Aeronautics, Nuclear Waste Disposal, Turbine Production, and Mechanical Parts Manufacturing.

Stainless Steel 17-4 PH Plates Equivalent Grades :

ASTM A693 SS 17-4 PH Plates Mechanical Physical properties:

Types of Stainless Steel 17-4 PH Plates :

Common Applications of 17-4 PH Stainless Steel :

The 17-4 can be applied to a range of applications including a variety of accessories and equipment such as gate valves, fasteners, food processing machinery, and aircraft structures.

• Aerospace applications - structural and parts
• Fasteners
• Base plates
• Chemical processing equipment
• Oil and petroleum refining equipment
• Nuclear components
• Food grade stainless steel for processing equipment
• General metalworking applications that call for precipitation-hardening stainless steel
• Biomedical — hand tools
• Food Process Equipment
• Gate Valves
• Mechanical Components
• Nuclear Waste Processing and Storage
• Oil and Gas Production — foils, helicopter deck platforms, etc.
• Pulp and Paper — paper mill equipments
• Motor Shafts
• Aircraft Structural Parts
• Valve Stems
• Gears

17-4PH Physical Properties :

Melting Range: 2560-2625°F (1404-1440°C)

Density: 0.2820 lb/in³

Features :

Corrosion Resistance: 17-4 stainless stands up excellently in a range of atmospheric environments even when exposed to corrosive elements.

Heat Resistance: Continuous use of 17-4 above 590⁰C is not recommended.

Temperature above can cause corrosive cracking. 550°C is the optimum tempering temperature in chloride media.

Very high yield strength up to 1100-1300 MPa (160-190 ksi) can be achieved.

Corrosion Resistance :

The corrosion resistance of Alloy 17-4PH is comparable to 304 stainless steel in most environments, and is generally superior to the 400 series stainless steels. It is used in applications where the combination of moderate corrosion resistance and unusually high strength are required. Alloy 17-4PH has corrosion resistance comparable to 304L in some chemical, dairy, food, paper and petroleum applications.

Alloy 17-4PH in the solution-annealed condition (Condition A) should not generally be put in service. The alloy is subject to brittle fractures and more sensitive to chloride stress corrosion cracking than the aged material.

If risks of chloride stress corrosion cracking are present the higher aging temperatures should be selected over 1022°F (550°C), preferably 1094°F (590°C). 1022°F (550°C) is the recommended tempering temperature in chloride service. 1094°F (590°C) is preferred in H2S media.

Alloy 17-4PH is subject to crevice corrosion and pitting attack when exposed to stagnant seawater for duration of time.

Cold Forming :

Alloy 17-4PH has limited cold forming properties. Cold forming can only be undertaken on plates in the fully annealed condition. Stress corrosion resistance is enhanced by re-aging at the precipitation hardening temperature after cold working.

Hot Forming :

Heat uniformly at 1742 – 2192°F (950 – 1200°C). A full solution anneal, cooling lower than 76°F (25°C) and aging at the required temperature must occur after hot forming. The post forming heat treatment should be a function of the desired mechanical properties.

Machining :

Alloy 17-4PH can be machined in both the solution treated and precipitation hardened conditions. Machining characteristics may vary according to the hardness of the metal. High speed tools are acceptable, but carbide tools are preferred. Standard lubrication should be used. Dimensional changes as a result heat treatment should be taken into account if very stringent tolerances are required.

Cutting :

Thermal cutting operations such as plasma cutting should be avoided. Mechanical cutting operations such as bandsaw, abrasive waterjet, shearing and machining are preferred.

Welding :

Alloy 17-4PH can be readily welded by most standard processes including SMAW, GTAW, PAW and GMAW.
