DIN 1.2316 Plastic Mould Tool Steel
DIN 1.2316 is a Chrome Molybdenum Steel with improved corrosion resistance properties, 1.2316 possesses good polishability, toughness, heat resistance and wear-resistant properties. It is often used for tools for processing chemically aggressive plastic materials (e.g. PVC).
1.2316 is a martensitic stainless chromium steel with uniform hardness in all dimensions, it is easy to machine, high surface finish and polishability. 1.2316 is commonly used for plastic moulds, and offers a higher corrosion resistance than 1.2083. It can be used with for the manufacturing of chemically aggressive materials like PVC and plastics containing abrasive fillers.
We can supply 1.2316 in the pre hardened condition (300HB or 340HB). This grade is not suitable for nitriding and chrome plating because of the high chrome content.

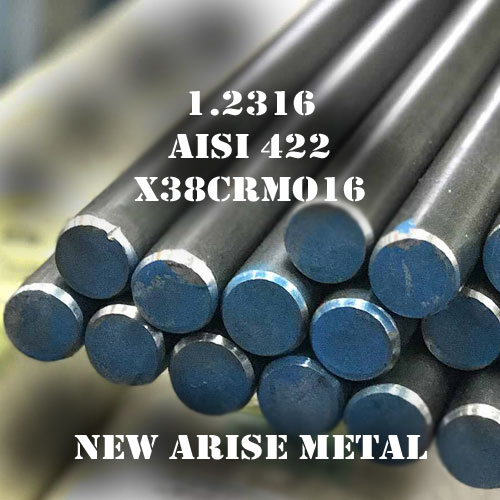

We New Arise Metal are Stockist & Supplier of 1.2316 Plastic Mould Tool Steel in Round Bars, Flat Bars, Square Bars, Blocks and Plates.
Size range :
- Diameter : 18mm - 500mm
- Thickness : 20mm - 400mm
- Width : Max 810mm
1.2316 Chemical Composition of X38CrMo16 / X36CrMo17 :
| Element % | Min. | Max. |
| C | 0.33 | 0.45 |
| Si | - | 1.00 |
| Mn | - | 1.50 |
| Ni | - | 1.00 |
| P | - | 0.030 |
| S | - | 0.030 |
| Cr | 15.50 | 17.50 |
| Mo | 0.80 | 1.30 |
Equivalent Designation of 1.2316 Tool Steel :
- DIN : X38CrMo16
- DIN : 1.2316
- AFNOR : Z35CD17
- UNI : X38CrMo16KU
- AISI : 422
- JIS : SUS4201J2
Strength :
- 280 - 325 HB (≈ 950 - 1100 N/mm²)
Character :
- Corrosion Resistant
- High Alloy
- Polishable
- Pre Toughened Tool Steel
Applications of 1.2316 Plastic Mould Steel:
Molds for pressing of chemically-aggressive plastic substances etc. All kinds of silicon steel sheet and high-speed blanking die. Precise stamping die. Cold extruding forming die. Cavitations Molds, Standard Mould Base, Compression Mould for SMC, blowing mould, Pet preform mold, plastic piping & plumbing injection molds.
- Injection Mould for Plastics
- Die Casting Moulds
- Moulding of Corrosive Material (PVC)
- Extrusion Tools
