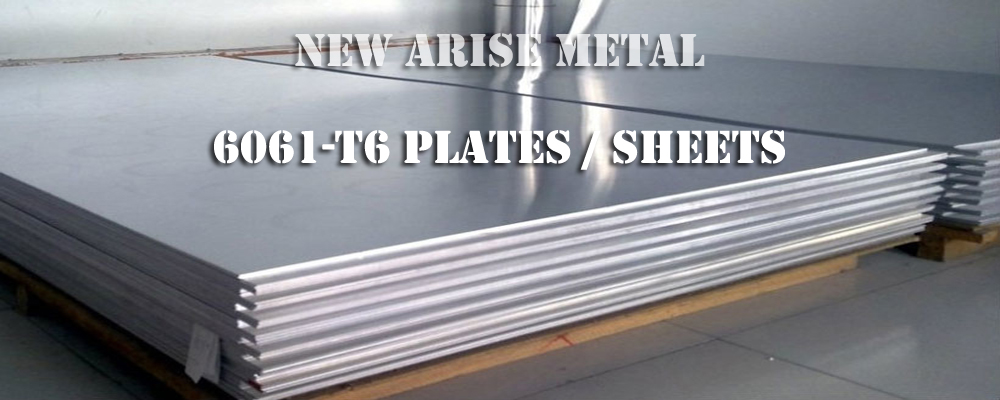

Aluminium Alloy 6061-T6 Sheets & Plates

6061 Aluminium Alloy Sheet & Plate

Aluminium Alloy 6061 is a precipitation hardened Aluminum Alloy, containing Magnesium and Silicon as its major alloying elements. Originally called "Alloy 61S", it was developed in 1935. It has good mechanical properties, exhibits good weldability, and is very commonly extruded (second in popularity only to 6063). It is one of the most common alloys of aluminum for general purpose use. It is commonly available in pre-tempered grades such as 6061-O (annealed), tempered grades such as 6061-T6 (solutionized and artificially aged) and 6061-T651 (solutionized, stress-relieved stretched and artificially aged).

6061 Aluminum Sheet & Plates offers a combination of Higher Strength, Good Corrosion Resistance and Machinability making the 6061 grade the most widely used aluminum sheet and plate grade available for all types of fabrication projects. The general purpose 6061 Aluminum Sheet & Plate is heat treatable, resists cracking due to stress, and is easy to weld and machine, but limited on formability. 6061 Aluminum Sheet & Plate are ideal for structural framing, base plates, gussetts, aircraft, marine and automotive parts, etc.

General 6061 characteristics and uses: Excellent joining characteristics, good acceptance of applied coatings. Combines relatively high strength, good workability, and high resistance to corrosion; widely available.

Uses of 6061: Aircraft Fittings, Camera Lens Mounts, Couplings, Marines Fittings and Hardware, Electrical Fittings and Connectors, Decorative or Misc. Hardware, Hinge Pins, Magneto Parts, Brake Pistons, Hydraulic Pistons, Appliance Fittings, Valves and Valve Parts.

6061-T6 Aluminum Sheets & Plates

6061 is the least expensive and most versatile of the Heat Treatable Aluminum Alloys. It has most of the good qualities of aluminum. It offers a range of good mechanical properties and good corrosion resistance. It can be fabricated by most of the commonly used techniques. In the annealed condition it has good workability. In the T4 condition fairly severe forming operations may be accomplished. The full T6 properties may be obtained by artificial aging. It is welded by all methods and can be furnace brazed. It is available in the clad form ("Alclad") with a thin surface layer of high purity aluminum to improve both appearance and corrosion resistance. Applications: This grade is used for a wide variety of products and applications from truck bodies and frames to screw machine parts and structural components. 6061 is used where appearance and better corrosion resistance with good strength are required.

Alloy 6061 Plates, Coils and Sheets are the most versatile of the heat treatable aluminum alloys. Though less strong than most of the 2xxx and 7xxx alloys, 6061 aluminum provides an extensive range of mechanical properties and corrosion resistance and can be fabricated by many of the commonly used practices.  In the "O" temper or annealed condition, alloy 6061 has good formability.  In the T4 condition, fairly severe forming can be done; whereas, in the T6 condition, properties may be obtained by artificial aging.

Bare aluminum sheet has tensile strength: 42,000 psi, yield strength: 37,000 psi. This grade is used of a wide variety of products and applications from truck bodies and frames to screw machine parts and structural components.

Aluminum 6061-T6 Sheet & Plates is one of the most versatile of the aluminum products. It is a general purpose alloy containing magnesium and silicon. Of the heat-treated alloys it is very corrosion-resistant. It is lightweight, readily machined, and can be welded by common methods.

Specifications:

6061 Aluminium Sheet & Plate Temper 0, H32, H34, H38 as per ASTM B209, ASTM-B-209, EN573, and EN485 international standards. Aluminum Alloy 6061 O, T1, T4, T42, T4510, T4511, T51, T6, T62, T6510, or T6511. Back, UNS Number – UNS A96061, Specification – AMS-QQ-A-200/8

6061-O Aluminum Sheet: ASTM-B-209, AMS-4025

6061-T4 Aluminum Sheet: ASTM-B-209, AMS-4026

6061-T6 Aluminum Sheet: ASTM-B-209, AMS 4027

6061-T6, T651; ASTM B209; AMS-QQ-A-250/11

6061-T6, AMS-QQ-Q-250/11 AMS 4027

Characteristics:

Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Good

Finish:

Mill Finish, Not Polished, Smooth Surface

Mechanical Properties:

Tensile Strength = 45 ksi; Yield Point = 40 ksi
Elongation % in 2"= 12%
Modulus of Elasticity = 10 ksi
Shear Strength = 30 ksi; Fatigue Limit = 14%
Brinell Hardness = 95

The mechanical properties of 6061 depend greatly on the temper, or heat treatment, of the material.

6061 - Annealed 6061 (6061-O temper) has maximum tensile strength no more than 120 MPa (18,000 psi), and maximum yield strength no more than 55 MPa (8,000 psi). The material has elongation (stretch before ultimate failure) of 25–30%.

6061-T4 - T4 temper 6061 has an ultimate tensile strength of at least 210 MPa (30,000 psi) and yield strength of at least 110 MPa (16,000 psi). It has elongation of 16%.

6061-T6 - T6 temper 6061 has an ultimate tensile strength of at least 290 MPa (42,000 psi) and yield strength of at least 240 MPa (35,000 psi). More typical values are 310 MPa (45 ksi) and 270 MPa (39 ksi), respectively. In thicknesses of 6.35 mm (0.250 in) or less, it has elongation of 8% or more; in thicker sections, it has elongation of 10%. T651 temper has similar mechanical properties. The typical value for thermal conductivity for 6061-T6 at 25 °C (77 °F) is around 152 W/m K. A material data sheet defines the fatigue limit under cyclic load as 97 MPa (14,000 psi) for 500,000,000 completely reversed cycles using a standard RR Moore test machine and specimen. Note that aluminum does not exhibit a well defined "knee" on its S-n graph, so there is some debate as to how many cycles equates to "infinite life". Also note the actual value of fatigue limit for an application can be dramatically affected by the conventional de-rating factors of loading, gradient, and surface finish.

6061 Aluminum Sheet & Coil Applications:

• Truck bodies and frames
• Screw machine parts
• Structural components

Chemical Composition Limits (WT%) :

Typical Mechanical Properties :

Uses of Aluminium Alloy 6061 Plates & Sheets :

6061 is commonly used for the following:

• Construction of aircraft structures, such as wings and fuselages, more commonly in homebuilt aircraft than commercial or military aircraft. 2024 alloy is somewhat stronger, but 6061 is more easily worked and remains resistant to corrosion even when the surface is abraded, which is not the case for 2024, which is usually used with a thin Alclad coating for corrosion resistance.
• Yacht construction, including small utility boats.
• Automotive parts, such as the chassis of the Audi A8.
• Some tactical flashlights
• Aluminum cans for the packaging of food and beverages.
• SCUBA tanks (post 1995)

6061-T6 is used for:

• Bicycle frames and components
• Many fly fishing reels
• The Pioneer plaque was made of this alloy
• The upper and lower receivers of many non mil-spec AR-15 rifle variants
• Many aluminum docks and gangways are constructed with 6061-T6 extrusions, and welded into place
• Material used in some ultra-high vacuum (UHV) chambers
• Many parts for remote controlled model aircraft, notably helicopter rotor components
• The secondary chambers and baffle systems in firearm sound suppressors (primarily pistol suppressors for reduced weight and improved mechanical functionality), while the primary expansion chambers usually require 17-4PH or 303 stainless steel or titanium

Features:

Excellent at resisting moisture and strong for its light weight.

Workable:

Welds well with the proper equipment. Easy to Drill, Machine, Shear and Form.

Uses :

Skinning Frames, Truck Beds, Tool Boxes, Trays, Drip Pans, Ornamental Work, Etc.

Welding :

6061 is highly weldable, for example using tungsten inert gas welding (TIG) or metal inert gas welding (MIG). Typically, after welding, the properties near the weld are those of 6061-T4, a loss of strength of around 40%. The material can be re-heat-treated to restore near -T6 temper for the whole piece. After welding, the material can naturally age and restore some of its strength as well. Most strength is recovered in the first few days to a few weeks. Nevertheless, the Aluminum Design Manual (Aluminum Association) recommends the design strength of the material adjacent to the weld to be taken as 165 MPa/24000 PSI without proper heat treatment after the welding. Typical filler material is 4043 or 5356.

Extrusions :

6061 is an alloy used in the production of extrusions—long constant–cross-section structural shapes produced by pushing metal through a shaped die.

Forgings :

6061 is an alloy that is suitable for hot forging. The billet is heated through an induction furnace and forged using a closed die process. This particular alloy is suitable for open die forgings. Automotive parts, ATV parts, and industrial parts are just some of the uses as a forging. Aluminum 6061 can be forged into flat or round bars, rings, blocks, discs and blanks, hollows, and spindles. 6061 can be forged into special and custom shapes.

We New Arise Metal stocks all 3 tempers, "O", T4 and T6, of 6061 sheet products in thicknesses from 5 mm to 100 mm and in widths 1250 mm – 1500 mm.  All are certified to ASTM B209 and the appropriate AMS specification per temper.

The aluminum 6061 alloy is strong, easily machined, and weldable. Aluminum 6061 alloys are doubled the strength of aluminum 6063 alloys. Aluminum 6061 has an ultimate tensile strength of at least 42,000 psi (290 MPa) and yield strength of at least 35,000 psi (241 MPa). In thicknesses of 0.250 inch (6.35 mm) or less, it has elongation of 8% or more; in thicker sections, it has elongation of 10%. T651 temper has similar mechanical properties. The famous Pioneer plaque was made of this particular alloy. Order 6061 Aluminum Sheets in 6061 Aluminum in small quantities and no minimums of all Aluminum 6061 at New Arise Metal.
